BC Racing Coilvers BR Series Type RA for BMW E46 M3 with Centre or Offset Topmounts

For BMW E46 M3 01-06 with centre or offset topmounts. *Default Spring Rates: 6kg FRONT, 10kg REAR

This kit is supplied as a full coilover front and separate spring and damper rear as in the OE design.

By default we supply the coilover kits with the spring rates recommended for use on UK roads. If you prefer a different setup please leave a message at the check out stating your preferred spring rates. EXTRA LOW kit is also available on request. Custom made kits are non-returnable. Surcharge might apply if you specify a spring rate setting not available from the readily available list from BC Racing.

Camber Caster Kit is also available, please contact us for full options available.

Manufacturer: BC Racing

Warranty: 1 Year R.T.B.

The kit can be supplied with the normal centre topmounts or the offset topmounts. Please select the correct option for your vehicle. You can tell by just looking at the front top mounts to see if it is in the centre or offset position. Please make sure you order the correct kit as your original top mount design.

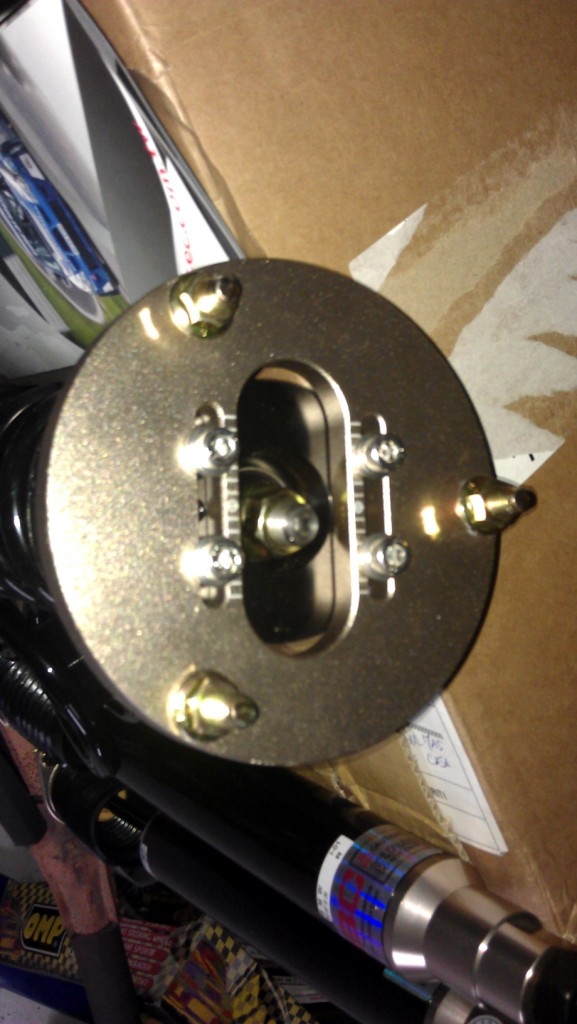

Centre Top Mounts (bolt in the centre):

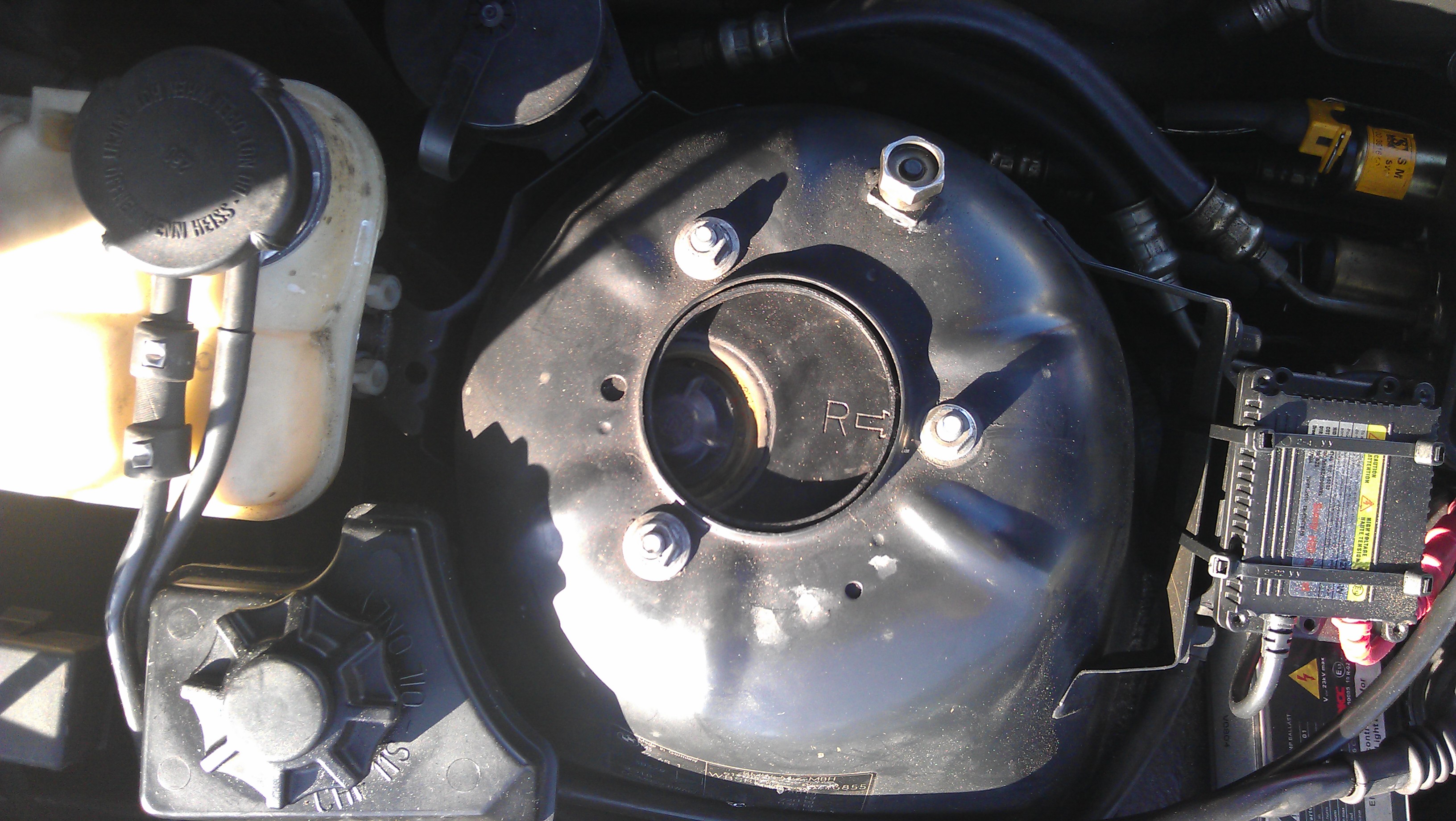

Offset Top Mounts:

Specifications (Default)

• Front Top Mount: Camber Adjustable
• Front Spring: 8 Kg
• Rear Top Mount: Rubber / None
• Rear Spring: 12 Kg
• Designed for fast road and track day use
• 30 way adjustable damping
• On car height adjustment

You may also be interested in the BC BR COILOVER REAR EXTENDERS for easy adjustments at the rear.

We can also supply this kit with camber and caster topmounts and various other spring rates, please contact us for pricing and information: info@ssdd-motorsport.com

*Picture for reference only

BR Series : Street and Circuit Coilover

The BR series coilovers use a large 46mm diameter piston in a 53mm diameter damper body to maximise oil capacity. As the damper unit operates the oil contained within heats up. The viscosity of oil changes as its temperature varies which can lead to changes in the damping characteristics of the unit.

BC Racing only use a very high quality oil with their coilovers but go that extra mile to maximise performance and build their BR range with a large 53mm diameter damper body. This increases the capacity of the unit which increases the volume of oil contained which in turn reduces the peak temperature and so significantly improves damper performance.

Features:

• Pillowball upper mount
• Camber adjustable top mounts
• Aluminium top plates
• 30 way adjustable damping
• Adjustable spring platform
• Height adjustment via bottom mount to retain full damper travel
• Bearing mounted upper front spring platform
• Dust boot to protect damper seals
• * some features are dependent on model

READ THE COMPLETE BR SERIES COILOVER SPECS HERE
